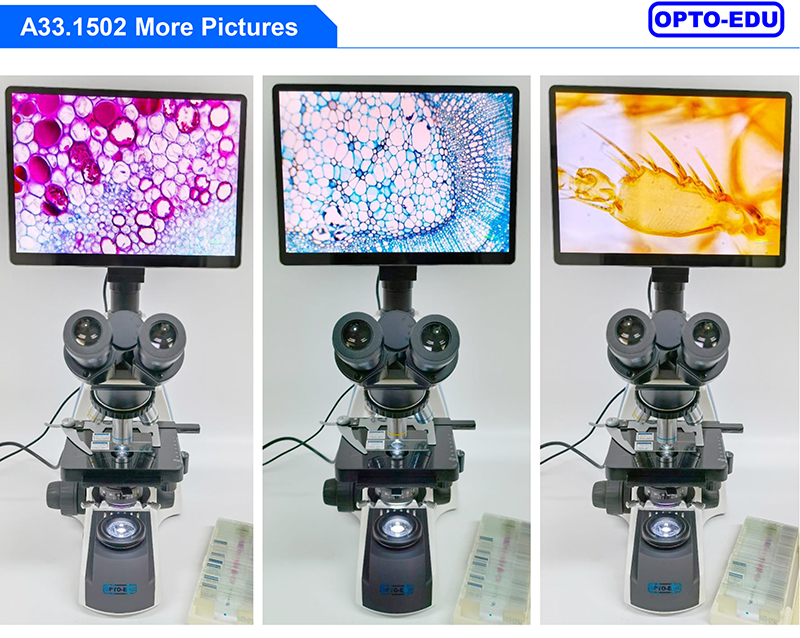

| A33.1502 9.7" LCD Digital Biological Microscope |

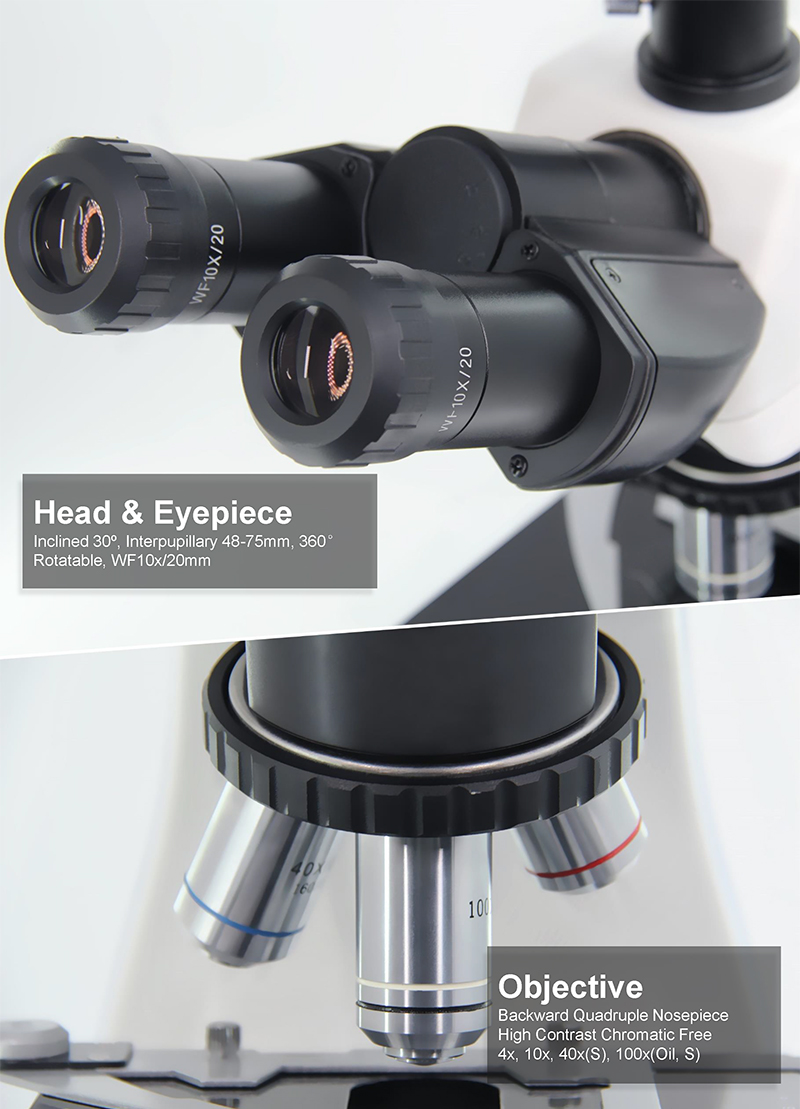

| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable |

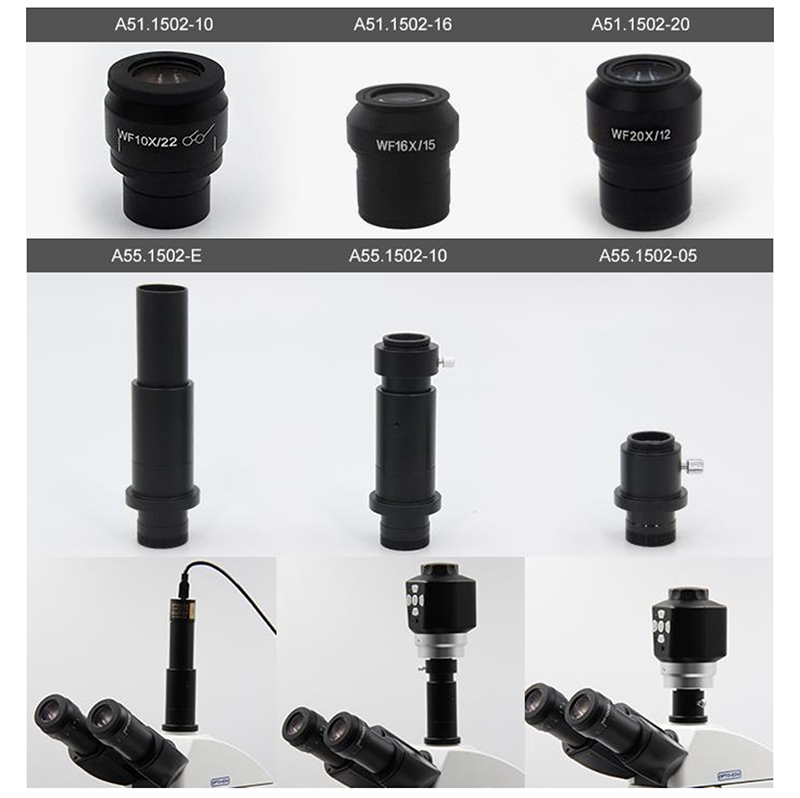

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm |
| Objective | High Contrast Chromatic Free
4x, 10x, 40x(S), 100x(Oil, S) |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm |
| Nosepiece | Quadruple, Backward With Click Stops |

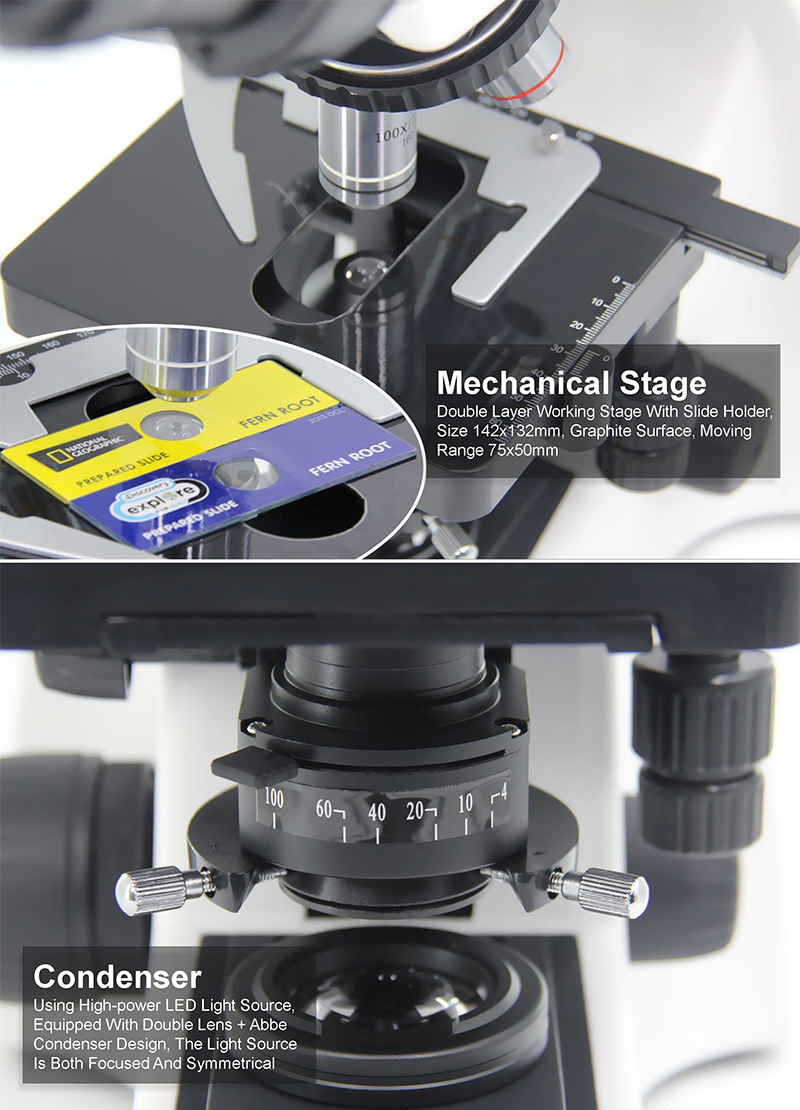

| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm |

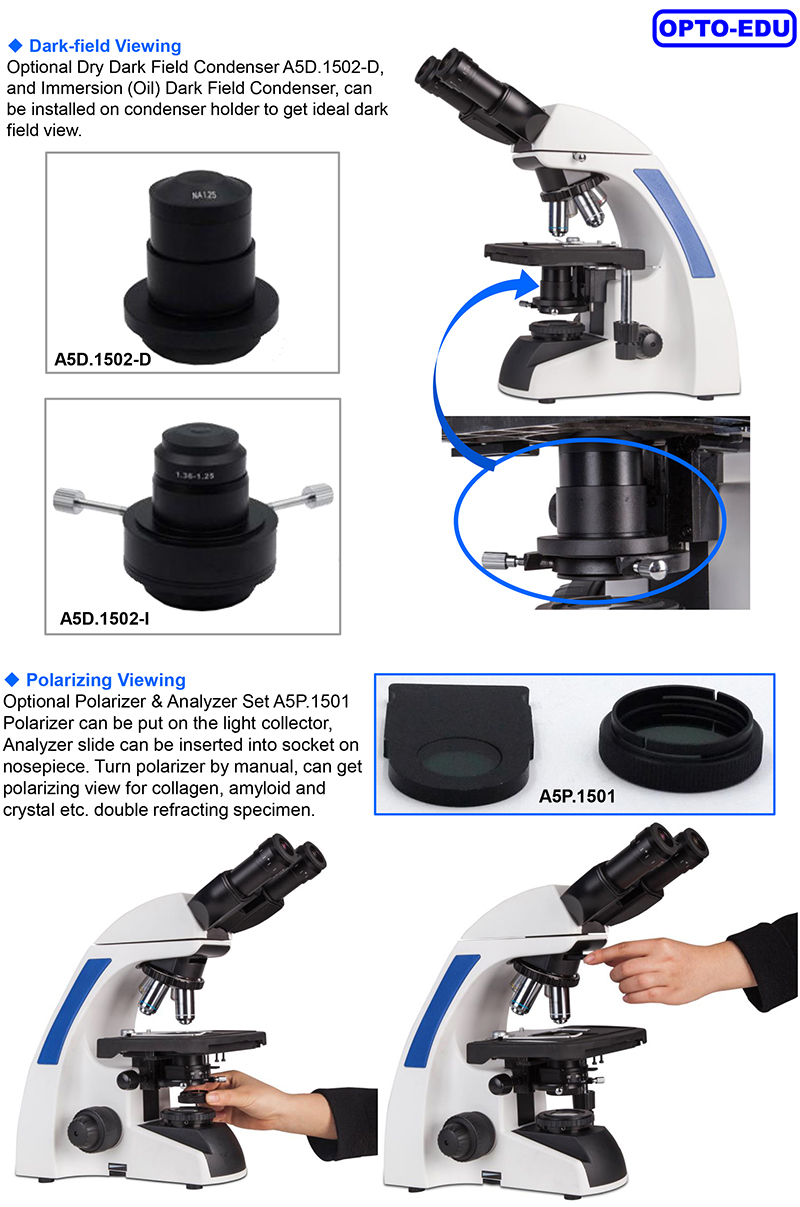

| Condenser | Abbe Condenser N.A.1.25, Center Adjustable |

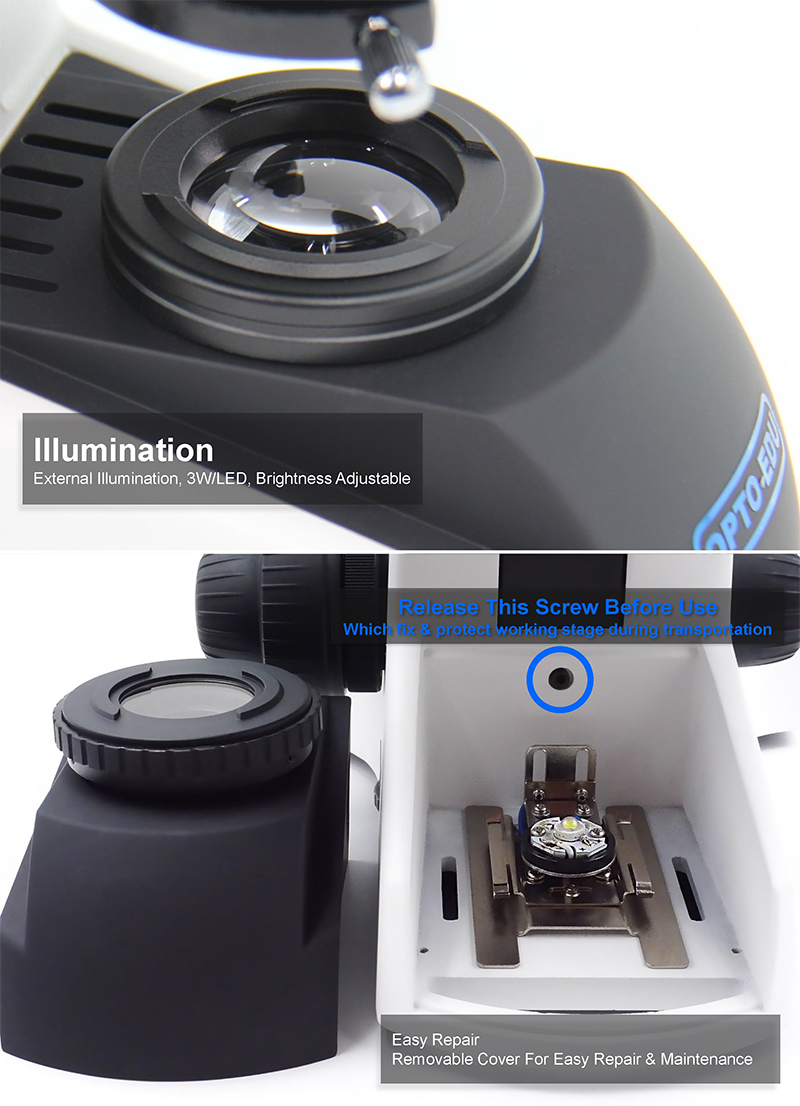

| Light Source | 3W LED Brightness Adjustable |
| Adapter | C-Mount 0.5x |

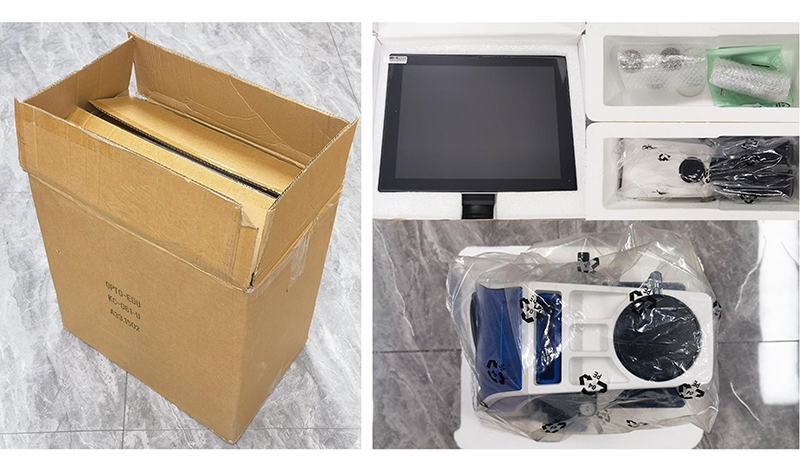

| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton |

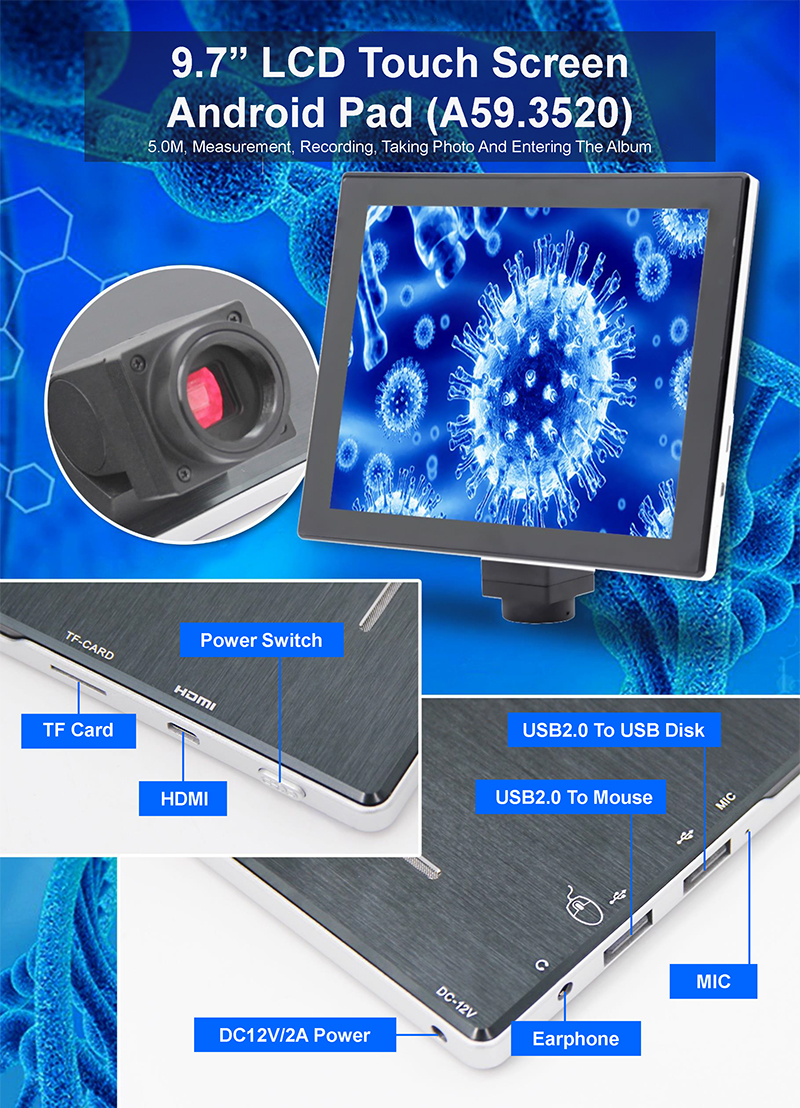

| 9.7" LCD Pad Digital Camera (A59.3520) |
| LCD | 9.7" HD IPS Touch Screen With Backlight |
| Camera | 5.0M 1/2.5" CMOS Digital Camera |
| Resolution | 2048x1536 @15FPS |
| Pixel | 2.2umx2.2um |
| Data Storage | TF Card or Built-in Memory |

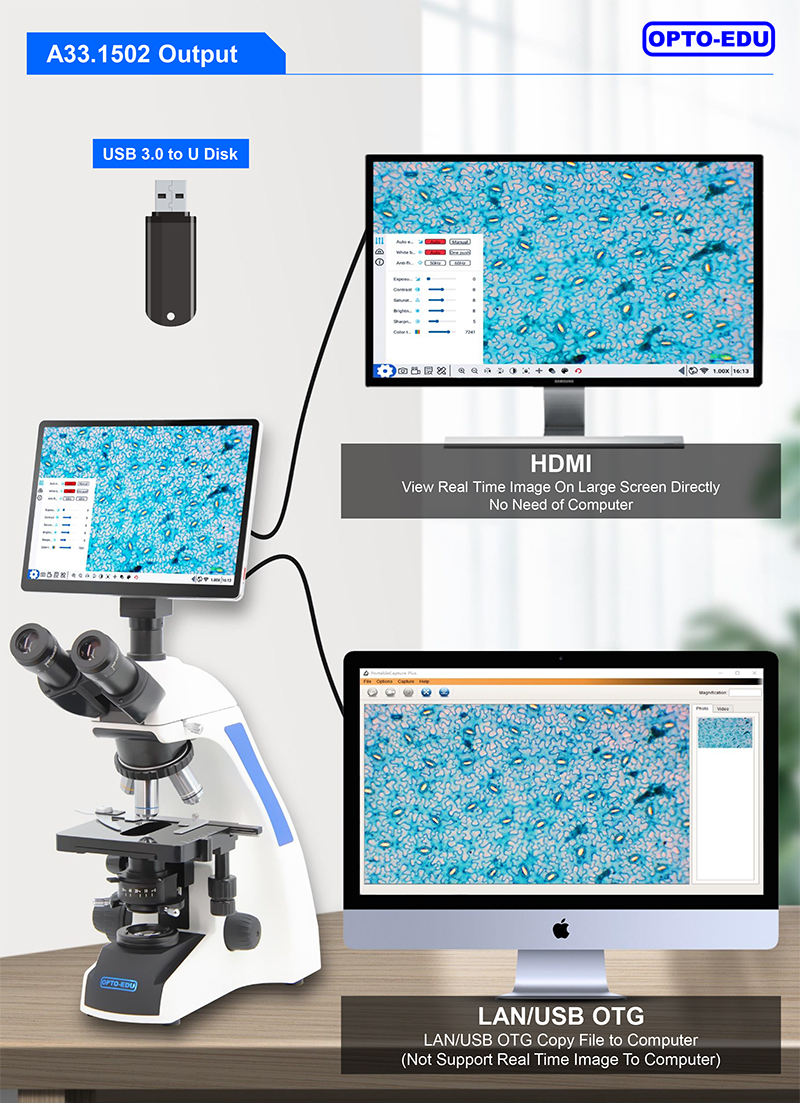

| Data Output | USB2.0, HDMI, TF Card |
| Photo | 5.0M .JPEG |
| Video | 1080p Video Record |
| System | Android 5.1 System |
| 90 Languages |
| Support Mouse + Keyboard Control |
| Support WIFI |
| Support Bluetooth |

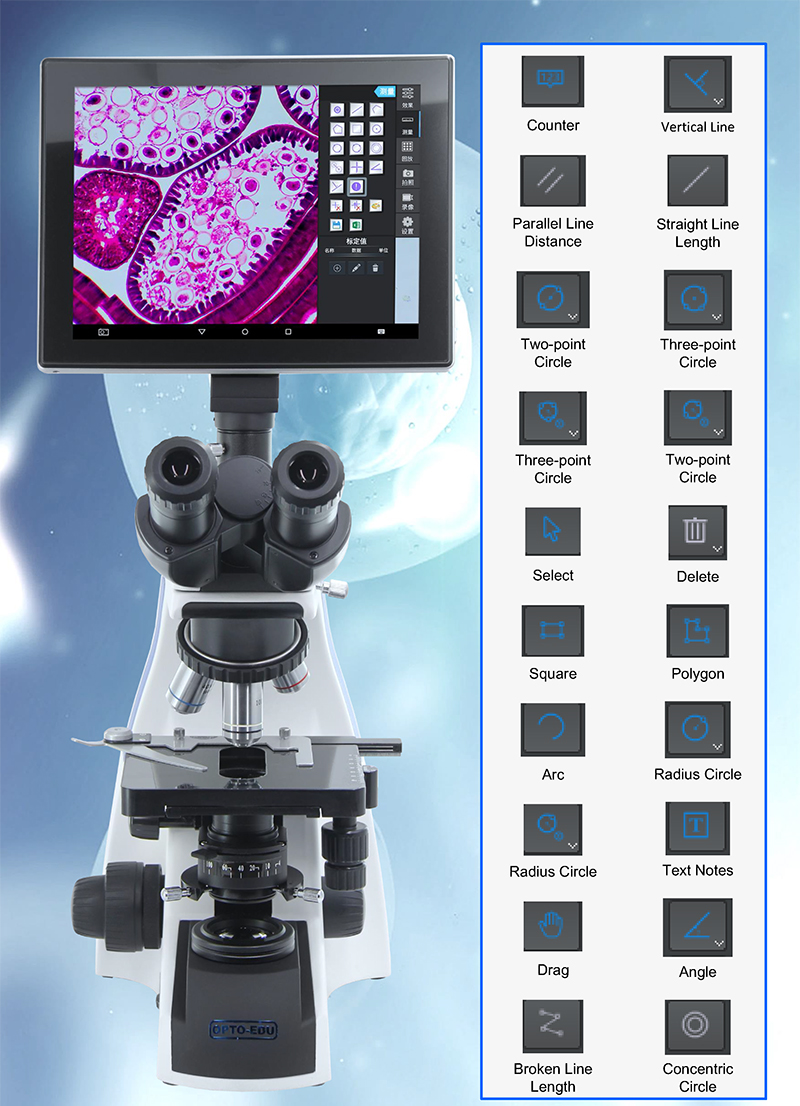

| Function | S-Eye Software & Instruction Manual Installed |
Mark:
Point, Crosshair, Coordinate, Text |
Length Measure:
Straight Line Length, Broken Line Length, Curve Length, Parallel Line Distance, Point To Line Distance |
Distance Between 2 Circle Centers:
Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle |
Geometric Measure:
Line Segment Length, Radius Fixed Circle, Two-point Fixed Circle, Three-point Fixed Circle, Concentric Circle |
Geometric Area Measure:
Polygon, Square |
| Power | DC 12V/2A Power Adaptor, AC 100~240V |
| Size | Pad 238x182x12mm, Camera 40x39mm |
