Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Brand Name : CNOEC, OPTO-EDU

Model Number : A11.1535

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Eyepiece : WF10x

Nosepiece : 4 Holes

Objective : Achromatic 4x,10x,40x,100x

Working Stage : Double Layer Mechnical

Condenser : Abbe N.A.1.25

Focusing : Coaxial Coarse & Fine

Light Source : 1W LED

Power Supply : 110/220V

Contact Now

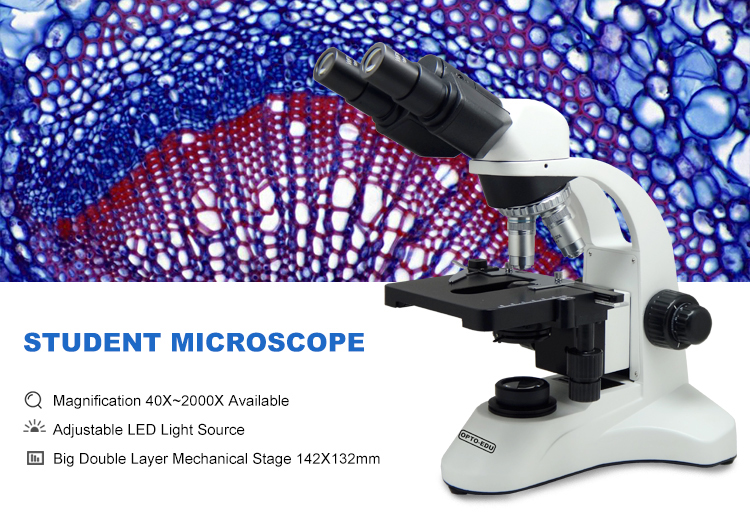

OPTO-EDU A11.1535-B LED double layer mechanical binocular biological microscope

A11.1535 is a very good choice for student, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF10X, WF16X, WF20X eyepiece enable utmost 2000X optical magnification, which can clearly observe biological slices, biological cells, bacteria and living tissue culture etc. And the curved handle is portable for users.

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Parameter

A11.1535 Student Microscope
Model V M B T
Head Teaching Head Monocular Head Binocular Head Trinocular Head
Inclined at 30º, Interpupillary 48-75mm, Left Eye Tube Diopter Adjustable+/-5°
Eyepiece WF10X/18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic Objectives 4x, 10x, 40x, 100x
Condenser Abbe Condenser NA1.25 with Diaphragm, with Filter Holder
Focusing Coaxial Coarse and Fine Adjustments, Moving Range 22mm
Working Stage Double Layer Mechanical Rectangular Stage 142X132mm, Moving Range 75X55mm
Light Source 1W LED, Brightness Adjustable
Adapter 1.0x C-Mount N/A N/A 1.0x C-Mount

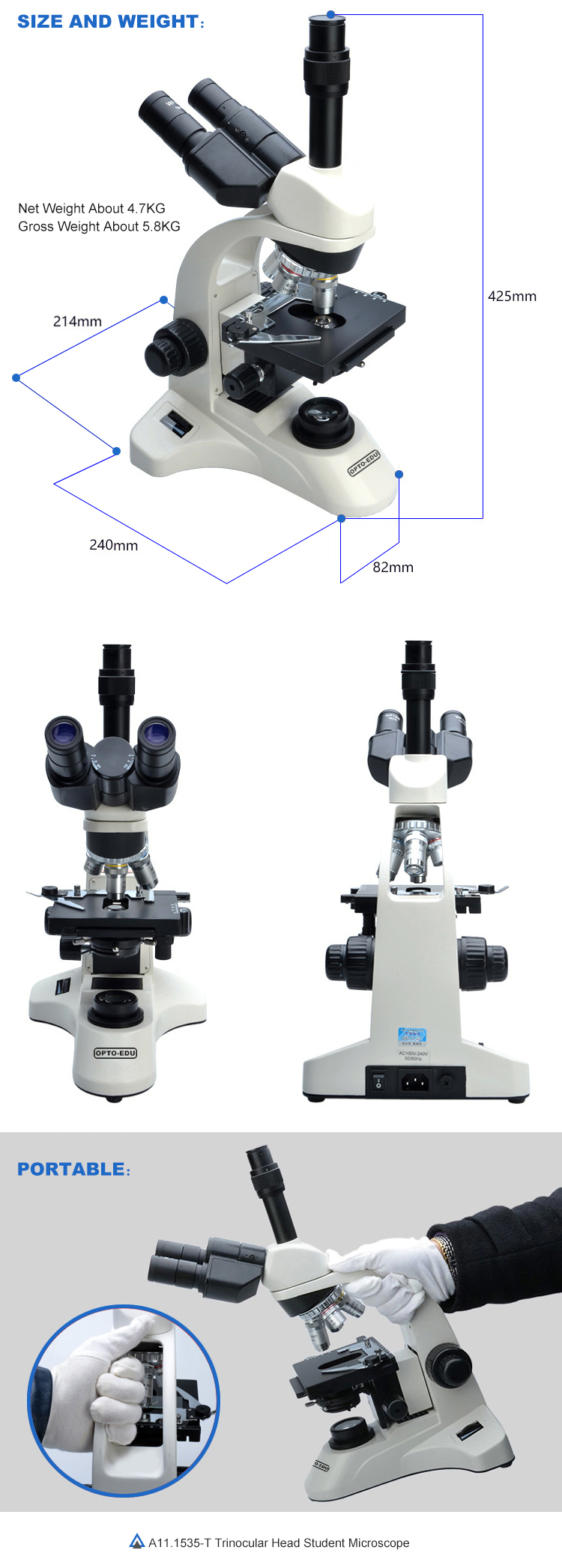

Product Display
A11.1535-T Trinocular Head Student Microscope A11.1535-M Monocular Head Student Microscope
A11.1535-B Binocular Head Student Microscope A11.1535-V Teaching Head Student Microscope

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

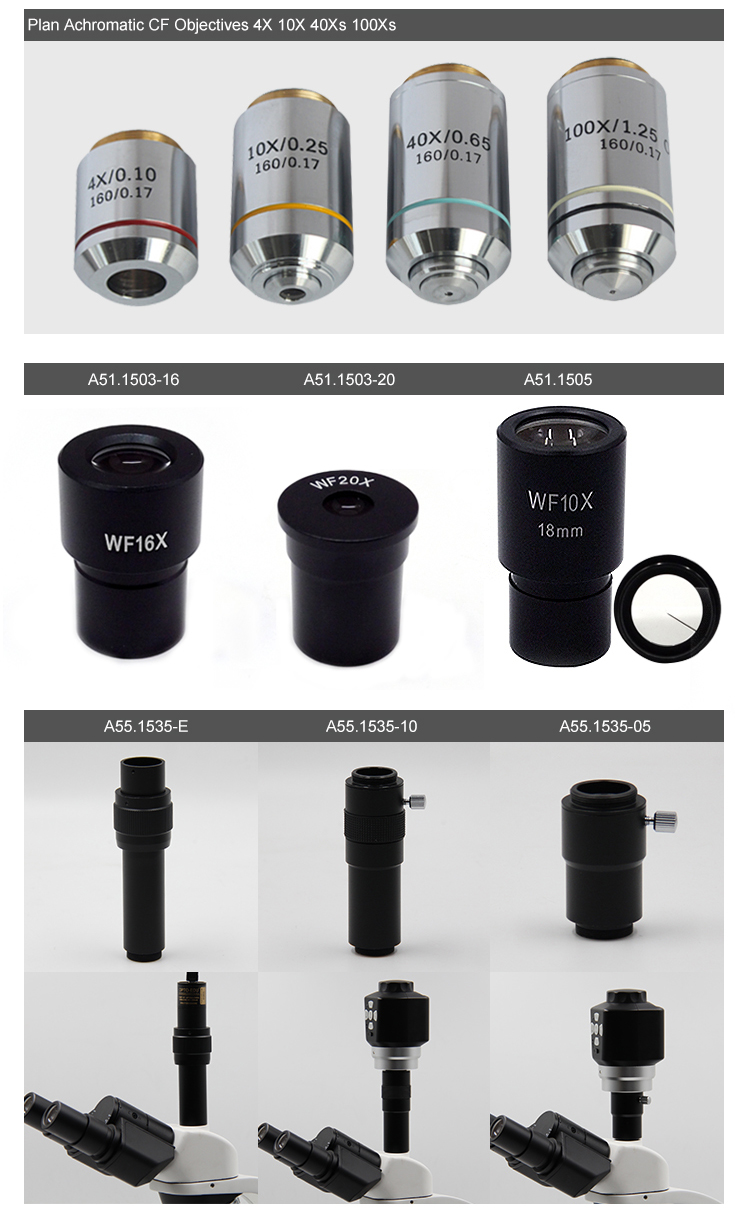

Optional Accessories
Eyepiece WF16X/13mm A51.1503-16
WF20X/11mm A51.1503-20
WF10X/18mm Pointer Eyepiece A51.1505
Objective Achromatic Objectives 20x A52.1505-20
Achromatic Objectives 60x A52.1505-60
Plan Achromatic Objectives 4x, 10x, 40xs, 100xs(oil) A52.1510

Light

 6V/20W Halogm Lamp, Brightness Adjustable A56.1504
Upgrade to 3W LED, Brightness Adjustable A56.1510
CCD Adapter Eyepiece Tube Adapter A55.1535-E
0.5x A55.1535-05

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

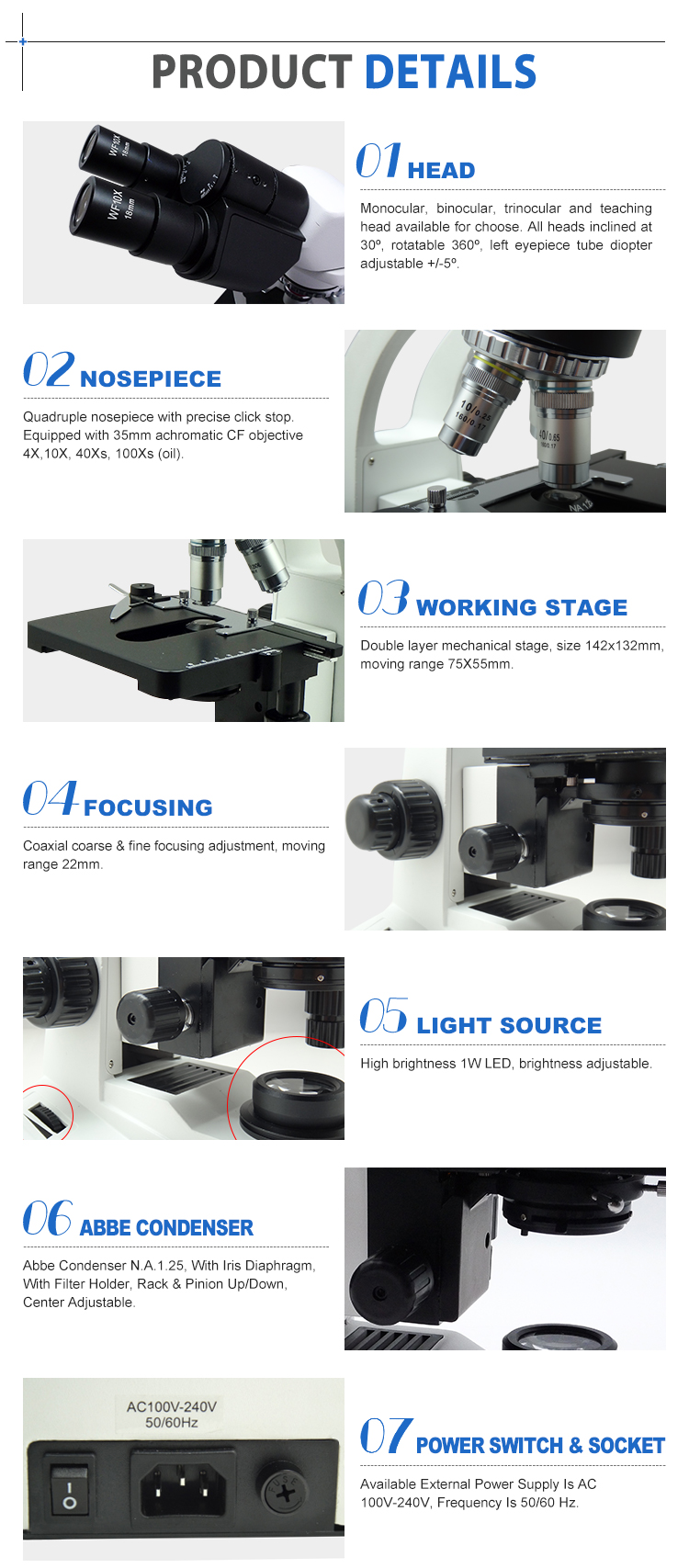

Product Details

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Related Products

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double LayerMechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Product Application

Student microscope is designed for tertiary institutions and primary and secondary schools, which convenient to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research. It is widely used in teaching demonstration, biochemical experiments, clinical research ect.

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Packaging & Shipping

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

Company Information

Mechanical Binocular Biological Microscope OPTO-EDU A11.1535-B LED Double Layer

OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
