Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021

Product Categories

Opto-Edu (Beijing) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A141021
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE

Model Number : A14.1021

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Applications : Research

Drawtube : Trinocular

Illumination : Halogen Lamp

max magnification : 400X

product name : Inverted Optical Microscope

Contact Now

Specifications:

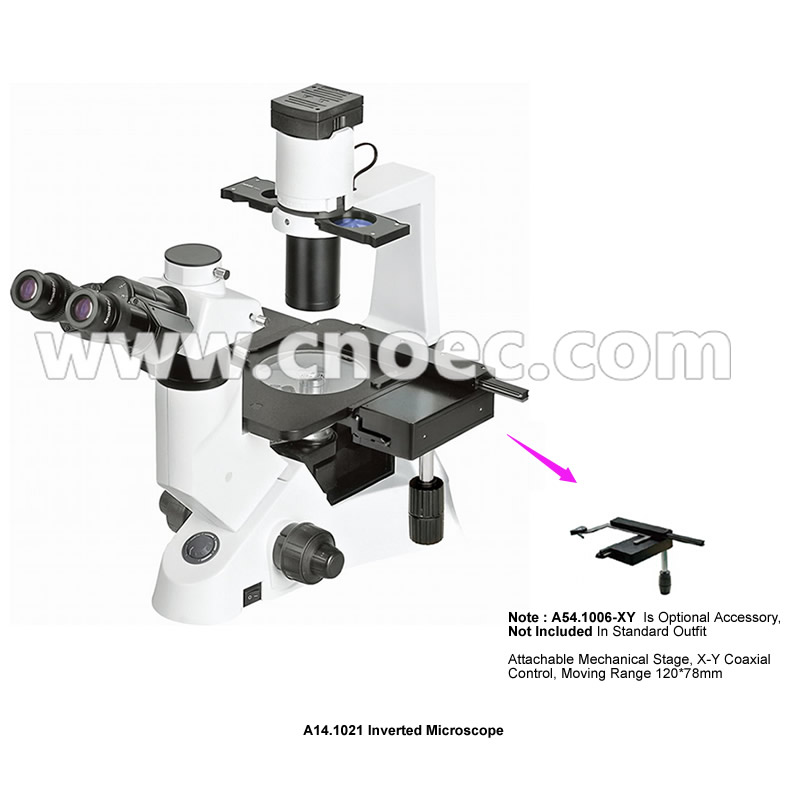

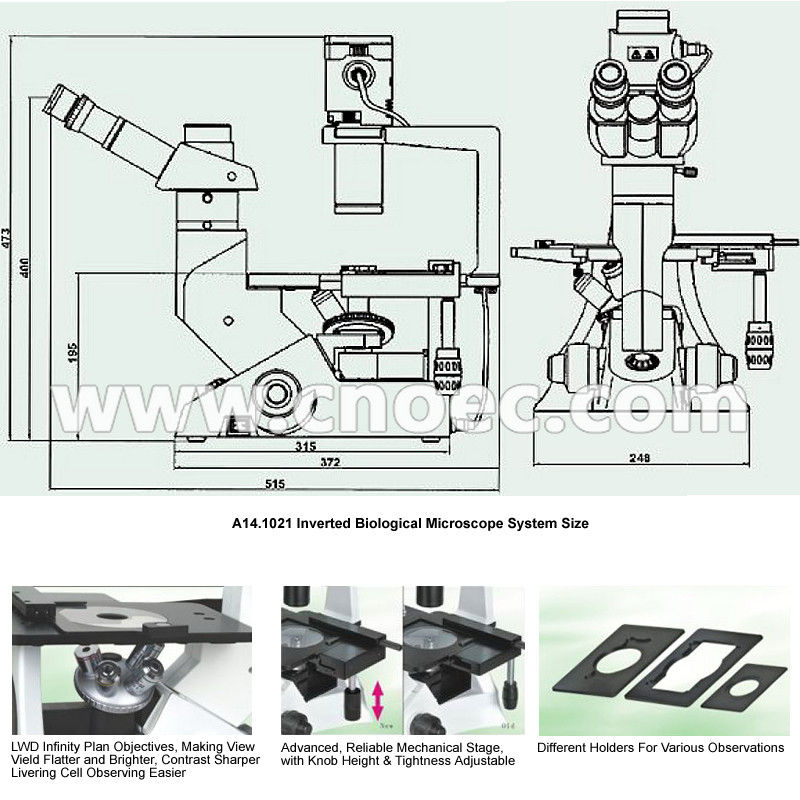

A14.1021 Inverted Biological Microscope
Viewing head	Trinocular head inclined at 30°, interpupillary 48-75mm
Eyepiece	High-point ,extra wide field eyepiece EW10x/20mm
Objective	Infinity Plan LWD Objective	4X/0.1,WD18mm
		40X/0.6,WD2.6mm(cover glass 1.2mm )
	Infinity Plan Phase Contrast Objective	PH10X/0.25,WD 10 mm
		PH20X/0.4,WD 5.1mm
Nosepiece	Quintuple Nosepiece
Condenser	ELWD Conderser NA 0.3, LWD 72mm; (Without condersor LWD150mm)
Phase Contrast	Phase Annulus Plate 10x-20, 40x phase annulus plate
Stage	Plain stage 160x250mm mm
	Glass insert
	Auxiliary stage 70x180mm
Focusing	Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotatio
Illumination	Halogen Lamp 6V30W, Brightness Adjustable
Filter	Blue, green and ground glass, Φ45mm

Optional Accessories			Item No.
Objective	Infinity Plan LWD Objective	10X/0.25,WD10mm	A5M.1031-10
		20X/0.4,WD5.1mm	A5M.1031-20
	Infinity Plan Phase Contrast Objective	PH40X/0.6,WD 0.35mm (cover glass 1.2mm)	A5C.1023-40
Centering Telescope	Centering Telescope, tube ф30mm		A5C.1011-30
Phase Annulus Plate	10x-20x, 40x phase annulus plate center adjustable		A5C.1013-3
Stage	Attachable mechanical stage, X-Y coaxial controll, movement range:120x78mm		A54.1006
	Terasaki holder		A54.1009
	Φ38mm Petri dish holder		A54.1010-38
	Φ90mm Petri Dish Holder		A54.1010-90
	Φ54mm Slide glass holder		A54.1011
Adapter	Photo adapter		A55.1001
	C-mount video adapter 0.45x		A55.1002-45
	C-mount video adapter 1.0x		A55.1002-10

Halogen Lamp 40X Inverted Optical Microscope Infinity Plan A14.1021
