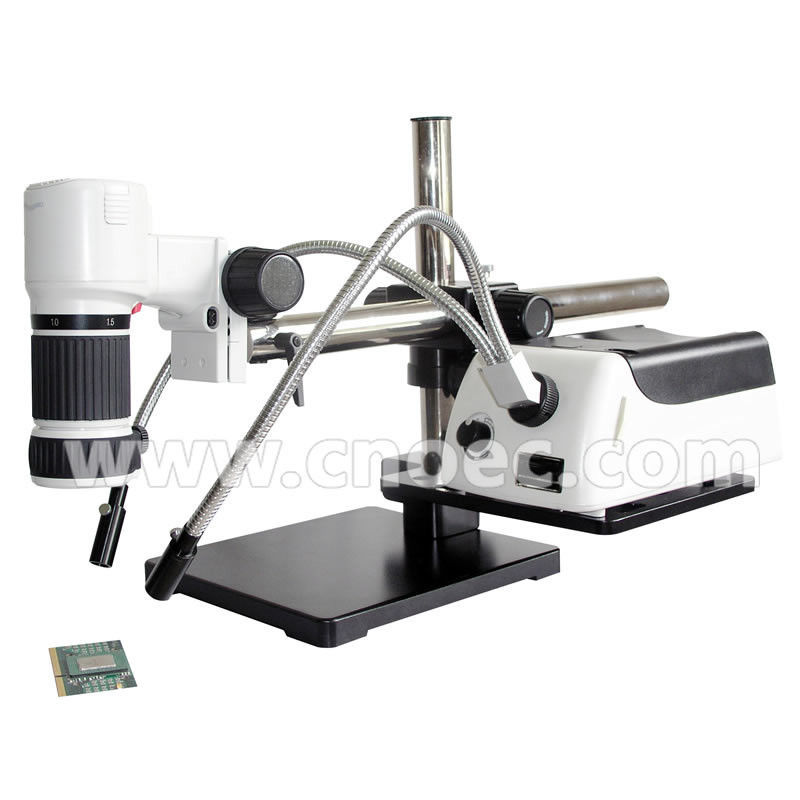

High Power ERS Digital Optical Microscope 1000X For School A32.0601-1000DPL

Name: High Power ERS Digital Optical Microscope 1000X For School A3206011000DPL
Brand: CNOEC, OPTO-EDU
Price: 1 USD

High Power ERS Digital Optical Microscope 1000X For School A32.0601-1000DPL Manufactures

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE|Rohs

Model Number : A32.0601-1000DPL

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Applications : school|Laboratory

Illumination : LED

max magnification : 1000X

Theory : Digital Optical Microscope

Resolution : 1280x1024

Contact Now

High Power ERS Digital Optical Microscope 1000X For School A32.0601-1000DPL

Description:

The digital video zoom microscope combines the tradtional optical technology and digital imaging technology and offers high quality video images. It can solve the problems generated by using a traditional microscope that requires a strict environment. Equipped with high performance Nickel hydrogen rechargeable battery, it can be used for longer inspection time in fieldwork.

With powerful functions of real-time micro-photography, video recording and measurement, on-site high-speed image acquisition, digital image input to PC for inspection, image storage, video recording, measurement at micron-level and image output can be realized. It is a good substitute for a traditional optical magnifier, stereo microscpe, comparing microscope, video measurement system and micro-photographing instrument. When used in long-distance scene evidence identification, the images of on-site evidence samples can be captured, inspected, compared and measured, and the on-site scene can enter the micro-world instantly.

Specifications:

A32.0601-1000DPL Digital Video Zoom Specification
Zoom Body of Zoom Range	0.7x-4.5x
Zoom Ratio	1:6.5
Total Magnification	4.7x-1000x
Semi-plan Achromatic Objective	0.3x, 0.5x, 0.75x, 1.5x and 2x (optional)
High-Power Objective Lens	5x and 10x (optional)
Image Sensor	1.3M pixel 1/2" color CMOS
Pixel Size	5.2um x 5.2um
Spectrum Response	400nm-1000nm
Scanning Type	Progressive scanning
Exposal Type	ERS
Resolution	1280x1024
Transmission Rate	16f/s@12801024, 30f/s@640480, 30f/s@320*240
White Balance	Automatic operation supported
Exposal Control	Manual opertion supported
Image Output	USB2.0, 480Mb/s
Function	Image capture, video recording and measuring function
Laser Pointer	Wave length: 650nm
Working Temperature	0-50 degree
Minimum System Requirement	Windows 2000, XP and Vista Operation System
	PIII 800 CPU or above
	256MB Memory or above
	64MB video memory or above
	USB2.0 interfaces
	1024*768 resolution monitor or above
Illuminator	Fiber optic illuminator
	Dual pipe light guide
	Fiber optical illuminator holder
Stand	Boom stand
	76mm E-arm
Optional Accessories
Objectives	0.3x, Semi-Plan, Outer Dia.30mm, W.D.331mm	A52.0626-03
	0.5x, Semi-Plan, Outer Dia.30mm, W.D.198mm	A52.0626-05
	0.75x, Semi-Plan, Outer Dia.30mm, W.D.131mm	A52.0626-75
	1.5x, Semi-Plan, Outer Dia.30mm, W.D.63mm	A52.0626-15
	2.0x, Semi-Plan, Outer Dia.30mm, W.D.46mm	A52.0626-20
	5x Infinity corrected long working distance objective	A52.0627-5
	10x Infinity corrected long working distance objective	A52.0627-10
Illumination Accessories	Iris Diaphragm	A56.0606
	LED side light	A56.0607
Tripod & Accessories	Tripod,Full Size, 3.5Kgs, with Panhead.	A50.0604-11
	Tilt Ball Head	A50.0604-12
	Super Mag Slider, Made of Magnesium Alloy	A50.0604-13
	Extension Bar, Total Length 600mm	A50.0604-14
	Laptop Tray	A50.0604-15
	Tilt Ball Head Adapte	A50.0604-16
Polarizing Microscope	Polarizer	A5P.0602
Rechargeable Battery	4.8V 2200mA/h, Nickel hydrogen battery	A50.0602
	Battery Charger, Input Voltage 100-240V 50/60Hz, Output Voltage 6.0-6.5V, Current 250-350mA	A50.0602-R

High Power ERS Digital Optical Microscope 1000X For School A32.0601-1000DPL
