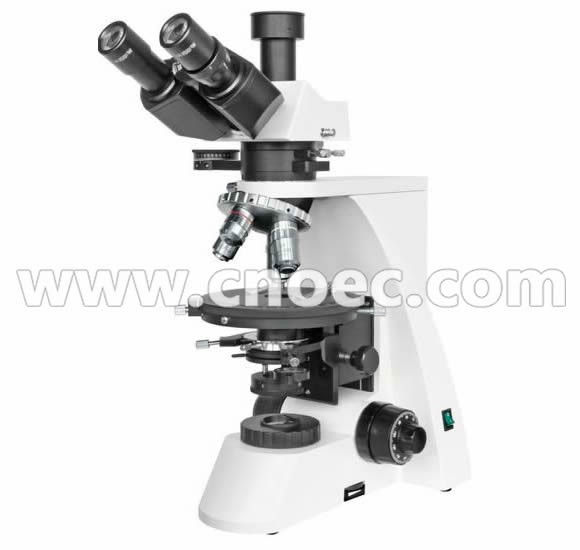

40X 100x Wide Field Polarizing Light Microscope Halogen Lamp A15.0202

  • 1
  • 2

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE|Rohs

Model Number : A15.0202

MOQ : 1 pc

Price : Negotiation

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

application : Research|Laboratory

Drawtube : Binocular

Illumination : Halogen Lamp

magnification : 40x - 1000x

Theory : Polarizing Light Microscope

Contact Now

Description:


--Equipped with strain-free plan achromatic objectives and wide field eyepiece
--Coaxial coarse/fine focus system with tension adjustable and limit stopper, minimum division of fine focusing: 2μm
--Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down the aperture diaphragm
--Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
--Collector composed with field diaphragm and filter seat
--Revolving round stage, 360°part scale and graduated in 1°increments, minimum resolution 6' when using vernier scale, center adjustable and with tightener
--Illumination with 6V20W halogen lamp, adjustable brightness
--Trinocular and digital & video camera can be chosen


Specifications:

A15.0202 Polarizing Microscope Specification
A1
A2
B1
B2
Eyepieces WF10X/18mm Wide Field
Division eyepiece 10X (Ф18mm) 0.10mm/div
Strain-free Plan Achromatic Objectives
281 series
PL 4X/0.10
-
-
-
PL 10X/0.25
-
-
-
PL 40X/0.65 (spring)
-
-
-
PL 100X/1.25(Spring,oil)
-
-
-
Strain-free Infinity Plan Achromatic
282 series
PL 4X/0.10
-
-
-
PL 10X/0.25
-
-
-
PL 40X/0.65 (spring)
-
-
-
PL 100X/1.25(Spring,oil)
-
-
-
Strain-free Plan Achromatic
(no cover glass)
284 series
PLL4X/0.10
-
-
-
PLL10X/0.25
-
-
-
PLL 40X/0.6
-
-
-
PLL 60X/0.75 (spring)
-
-
-
Strain-free Infinity Plan Achromatic (no cover glass)
286 series
PL 5X/0.12
-
-
-
PL 10X/0.25
-
-
-
PL20X/0.4
-
-
-
PL 40X/0.6 (spring)
-
-
-
Head Trinocular head,revolved (inclination of 30 °),100% image light for photography capable
Intermediate Attachment 360° rotatable with scale and minimum vernier
Bertrand lens, impellent style, center adjustable
λ compensator
λ 1/4 compensator
Quarts wedge compensator
Focus System Coaxial coarse/fine system, with tension adjustable and limit stopper, minimum division of fine focusing 2um
Nosepiece Quadruple, frontward ball bearing inner locating
Stage

Rotatable stage, diameter |μ150mm, 360° graduated (in 1° increasements), minimum retardation resolution 6' center adjustable and with tightener

Abbe Condenser

N.A. 1.25 rack & Pinion adjustable

Polarizer 360°rotatable, with four scale is 0°, 90°,180°,270°
Filter Frosted filter
Blue filter
Collector For illumination with halogen lamp (with field diaphragm)
Illumination Unit With polarizer, 6V20w, halogen lamp, adjustable brightness
Optional Accessories
Item No.
Eyepiece WF16x/11mm wide field
A51.0203-16A
Eyepiece Tube Binocular, inclination of 30°
A53.0204-9
Objective Strain-free plan achromatic PL 5x/0.12
A5P.0205-5
Strain-free plan achromatic PL 20x/0.40
A5P.0205-20
Strain-free plan achromatic PL 60x/0.85(Spring)
A5P.0205-60
Infinity strain-free plan achromatic PL 4X/0.10
A5P.0207-04
Infinity strain-free plan achromatic PL 20X/0.40
A5P.0207-20
Nosepiece Quintuple, frontward ball bearing inner locating
A54.0203-4
Filter Green filter
A56.0209-2
Yellow filter
A56.0209-3
CCD Adapter
0.4X
A55.0202-01
0.5X
A55.0202-04
1X
A55.0202-02
0.5X with dividing 0.1mm/Div
A55.0202-03
Photo Adapter
2.5X/4X Change over photograph adapter with 10X viewing eyepiece
A55.0201-1
4X Focusing photograph adapter
A55.0201-2
MD Adapter
A55.0201-3
PK Adapter
A55.0201-4
DC Adapter
Digital camera adapter CANON (A610,A620,A630,A640)
A55.0204-01
