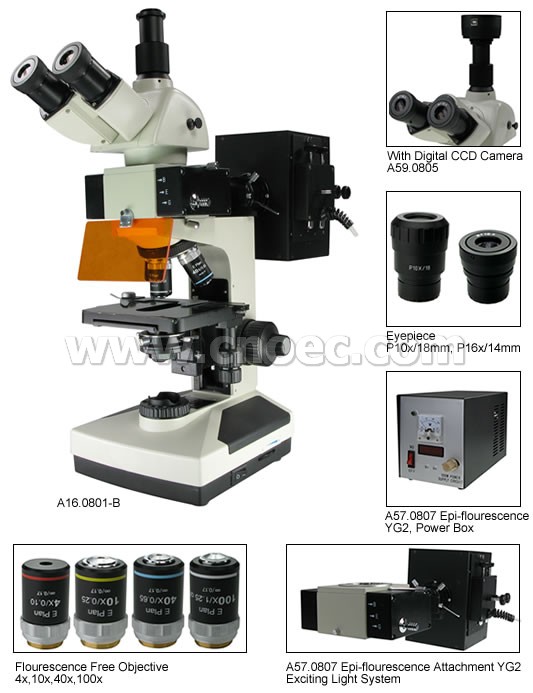

40X - 1600X Trinocular Fluorescence Microscope Compound Microscopes A16.0801

A16.0801 Specification

A

B

Total Magnification

40x-1600x

●

●

Eyepiece

WF10x/18mm, diopter adjustable, high eyepoint

●

●

WF16x/14mm, diopter adjustable, high eyepoint

●

●

Head

Compensation brinocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, infinity optical system

●

Compensation trinocular head, 30° inclined, 360° rotatable, interpupillary distance 55-75mm, infinity optical system

●

Nosepiece

4 Holes revolving nosepiece, inward

●

●

Objective

Fluorescence free objective 4x,10x, 40x (Spring),100x (Spring, Oil )

●

●

Focusing

Coaxial coarse and fine focusing knob, with tension adjustable ring and rack stop. coarse focusing range 22mm, fine focusing graduation is 0.002mm

●

●

Stage

Large double layer mechanical stage, size 160x142mm, moving range 76x52mm, can hold 2 slides.

●

●

Condenser

Abbe condenser N.A.=1.25, with iris diaphragm, height adjustable

●

●

Light Source

Kohler illumination, iris adjustable, halogen lamp 12V20W, brightness adjustable

●

●

Power

90-240V wide voltage

●

●

Adapter

Simple CCD Adapter

●

Fluorescence Kit

Exciting System

B(Blue) exciting light filter system EX490 DM510 BA515

●

●

G(Green) exciting light filter system EX545 DM580 BA590

●

●

O(Ordinary) transmit light system

●

●

Light Source

100W HBO ultra hi-voltage spherical mercury lamp

●

●

Power Box

AC220V/60Hz, with fuse 250V/8A

●

●

Protection Barrier

Barrier to resist the ultraviolet light

●

●

Oil

Fluorescent free objectives

●

●
